Instruction Manual

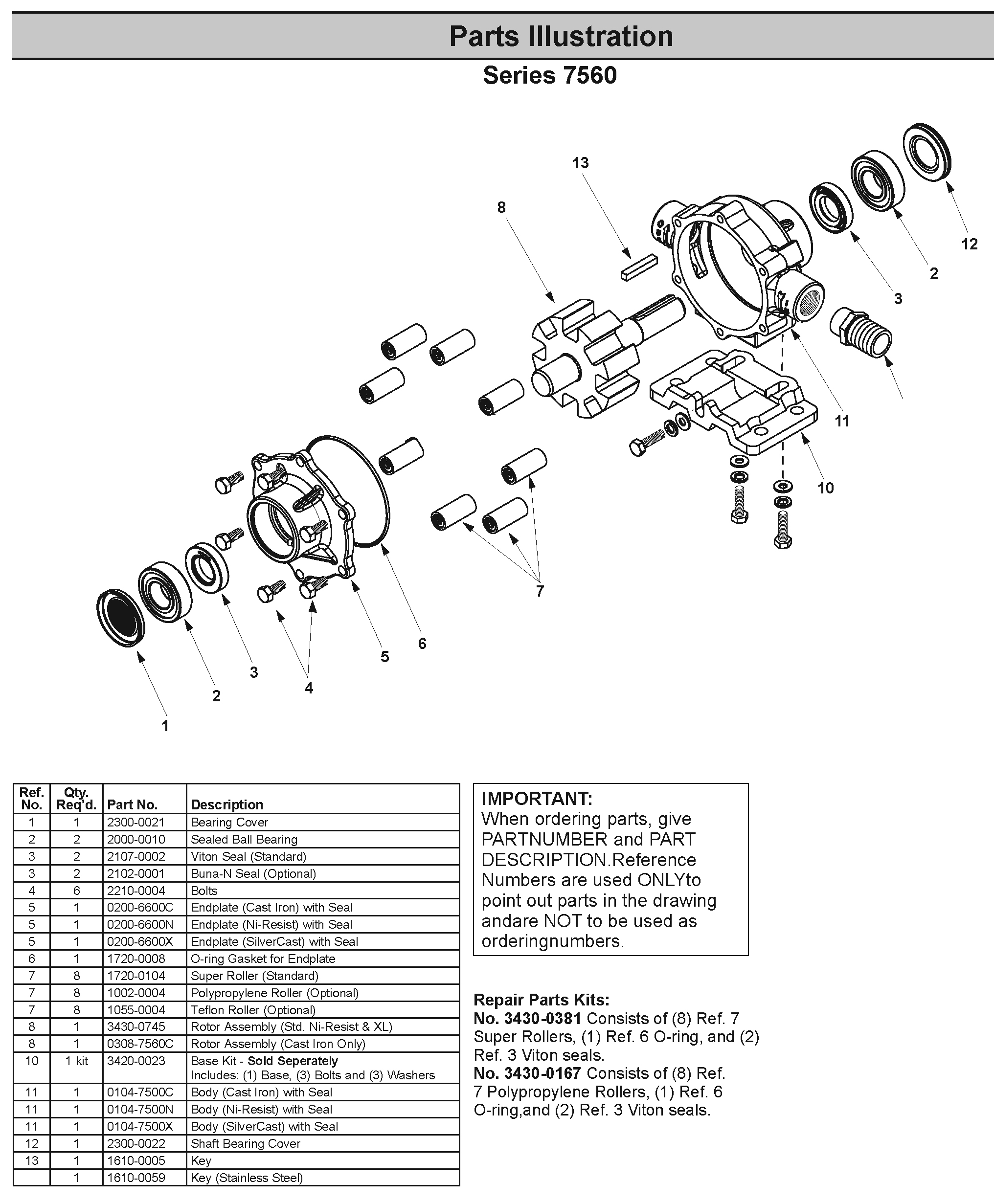

Part Breakdown
Roller Material Comparison
- Part #:
- 7560C-R
- Manufacturer:
- Hypro
- Material:
- Cast Iron
- Gasket Material:
- Viton
- Inlet:
- 3/4" NPT
- Maximum Flow Rate (GPM):
- 22.5
- Maximum Pressure (PSI):
- 300
- Maximum RPM:
- 1000
- Maximum Temperature (F°):
- 140
- Outlet:
- 3/4" NPT
- Pump Series:
- 7560 8-Roller
- Shaft:
- 0.9375
- Shaft Rotation:
- CW
- Flow Rate (GPM):
- 4
- Material:
- Cast Iron
- Gasket Material:
- Viton
- Inlet:
- 3/4" NPT
- Maximum Flow Rate (GPM):
- 22.5
- Maximum Pressure (PSI):
- 300
- Maximum RPM:
- 1000
- Maximum Temperature (F°):
- 140
- Outlet:
- 3/4" NPT
- Pump Series:
- 7560 8-Roller
- Shaft:
- 0.9375
- Shaft Rotation:
- CW
- Flow Rate (GPM):
- 4
- a_mpn:
- 7560C-R
