9 Gallon Master MFG REVOLT Rechargeable Cart Spot Sprayer

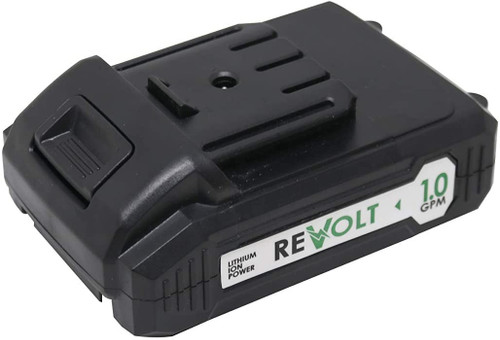

All new 9 gallon cart units sold by Sprayer Supplies are now on the Revolt standard. For replacement battery, please order REVOLT-144-B-CSK

• Rechargeable REVOLT 12 Volt Battery
• 2 Hour Run Time on Single Charge
• Front Mounted Nozzle with 50″ Swath
• Spot Spray Gun with Coiled Hose
• 18′ Vertical and 20′ Horizontal Spray
• Includes Hitch Bar for Towing
• Adjustable Handle for Easy Storage
• 12″ Wheels
• 9 Gallon Tank
• Ideal for Applying Insecticides & Herbicides
• Glyphosate Compatible

Sprayer Features: Get more purpose with the Master Manufacturing 9 Gallon Master Gardener Rechargeable Cart Sprayer. Pull and tow for use with watering, fertilizing, applying herbicides/pesticides or deicing sidewalks around the home. Featuring a top of the line pumping system that includes a robust Everflo 1.0GPM 12V on-demand diaphragm pump. Stay charged with the 12-volt rechargeable battery that lasts for an incredible 2 hours on a single charge. Includes 15 feet of hose to spray gun that gives more flexibility for those hard to reach areas. After application use, drain remaining water and chemical with the accessible molded in drain port. Roll on a wide range of rugged terrain on heavy-duty 12in. wheels. Can be pushed, pulled or attached to a lawn mower or ATV with the included hitch adapter. Approved for use with Round-Up® and other agricultural brand herbicides and insecticides. Backed by one year warranty on pump & components.

Spot Spraying: When it comes time to spot spray, un-holster your traditional spray gun and reach up to 18 feet vertically and 20 feet horizontally from the comfort of your seat. As applications change, quickly adjust the nozzle from a steady stream to a wide mist. Traditional spray gun features a trigger lock to reduce hand fatigue and an in-handle filter for increase durability.

Broadcast Spraying: This multi-purpose sprayer features a single nozzle broadcast spray boom that has a 4 foot spray swath. With a compact setup, easily prevent damage from oncoming obstacles such as trees or easily store sprayer without taking up extra room.

Coverage: This pull and tow sprayer is designed to handle under 1 acre* of coverage in one sitting. Making it perfect for small to medium lawns, food plots and waterways with an ATV (4-wheeler) or commercial mower.

Part Breakdown



Reference Number	Part Number	Description	Required
1	33-103197	Tank, 9 Gallon	1
2	TL-6B-W/GAS	Tank Lid	1
3	TL6B-GAS	Gasket	1
4	TLS-5D	Basket Strainer	1
5	SG-4200-MG	Gun, Spray, 2017 Master Gardner w/ Hose	1
6	NTL38-C	Elbow: 11/16" MPS x 3/8" HB	1
7	31-100249	Nozzle Bracket	1
8	33-100137	Screw, 10-24 x 1/2"	5
9	B12	Nozzle Body Nut, 11/16" FPS	1
10	NS-50	Nozzle Strainer, 50M Red	1
11	DF3.0	Nozzle, Deflect Tip, 3.0	1
12	8027	Nozzle Nut, 11/16" FPS	1
13	E3412	Adapter: 3/4" MGHT x 1/2" NPT	1
14	3N34	Cap, Garden Hose, 3/4" FGHT	1
15	33-103220	Gasket: 3/4" Super Seal	1
16	33-100149	Panel, Back, 2017 Master Gardner	1
17	EF1000	Pump, 1.0 GPM Everflo	1
18	EL1238	Elbow: 1/2" MPT x 3/8" HB	1
19	PBV-38HB	Valve: 3/8" Hose Barb	1
20	33-103126	Screw, 10-24 x 5/8"	4
21	33-103938	Hose, Braided, 3/8" (ask for length)	5
22	350-004	Hose Clamp	9
23	T1438	Tee: 1/4" HB x 3/8" HB x 3/8" HB	1
24	33-103194	Battery	1
25	33-100148	Battery Bracket	1
26	33-100200	Housing, Switch w/ Bracket, 2017 Master Gardner	1
27	33-100150-US	Charger, Battery, US 2017 Master Gardner	1
